What is parallel wire connection?

When a load’scurrent requirements cannot be met with one Power Supply, two or more power supplies can be connected in parallel to increase the output current.Thisconfiguration is known as parallel operation.

What is overload protection function?

Overload protection(OLP) function prevents damage to the Power Supply itself due to overcurrent (including output short-circuits). The protection function is activated and the output current is limited when the load current is greater than the overcurrent detection value (this value depends on the model).
The output voltage will also drop according to the overload (load impedance).
The drop level depends on the overload conditions and load line impedance.
The following table shows the six types of output voltage drop characteristics for main models when the overcurrent protection function is operating.

How to choose a LED power supply?

LED power supply actually is a kind of switch power supply.  It mainly consisted of five parts:

1)  Electromagnetic Interference network
2)  Rectifier filter
3)  Built-in Pulse Width Modulation unit
4)  Switch for energy transform
5)  Low ESR Pulse Width Modulation output devices

By converting the input power from power grid or other power sources, it provides you stable power output with stable current and voltage, which enables all kinds of electrical equipments work including LEDs (light emitting diode).

Thus, the output of a LED power supply shoul be contant voltage such as 5V, 12V, 24V, 36V, 48V.

As a user of LED power supply, please measure the full loading wattage of your LEDs, the loading wattage must lower than the rated wattage of the power supply, otherwise the power supply might have to work under overload situation or just shut down due to overload protection function of the power supply.

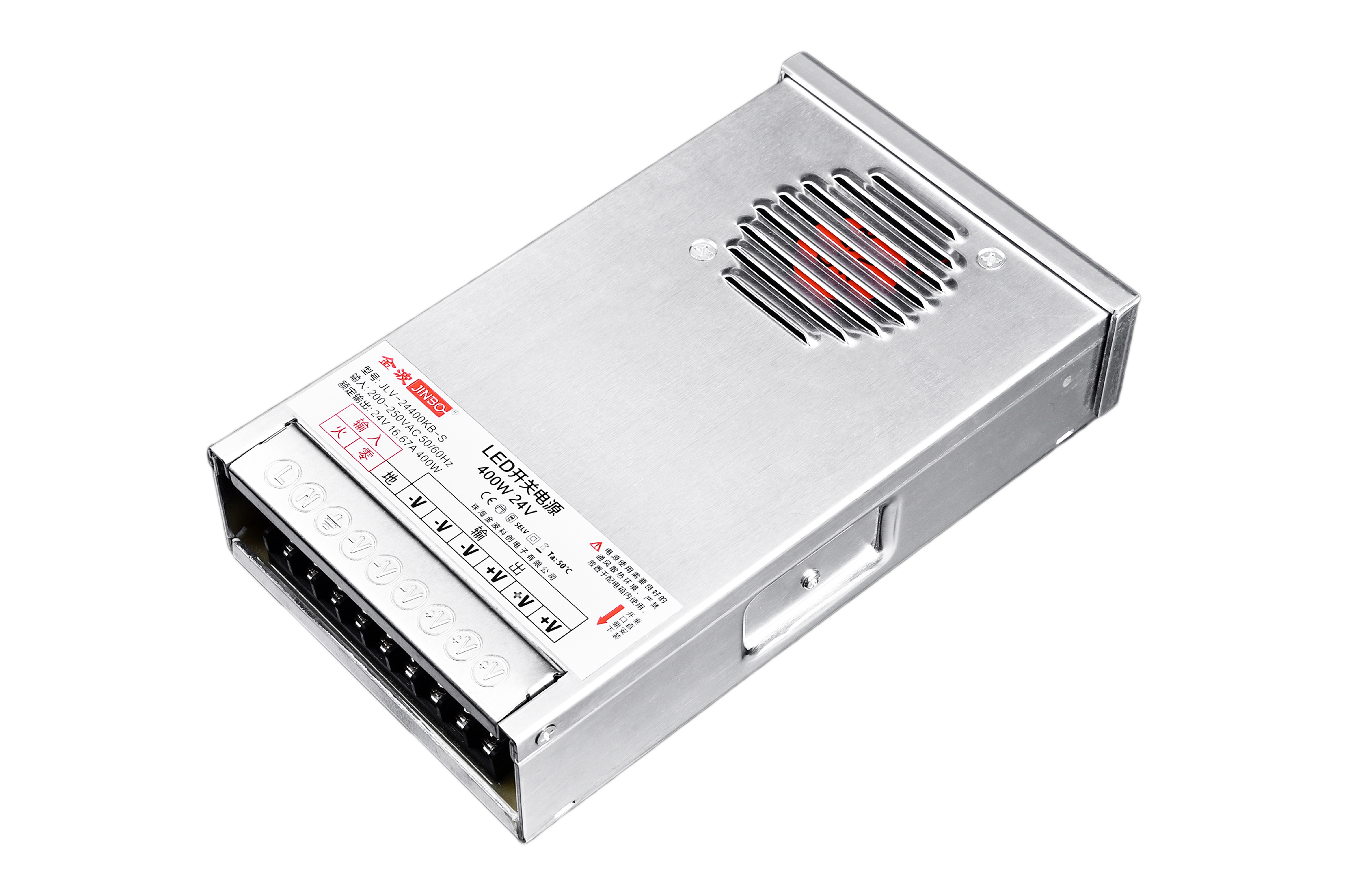

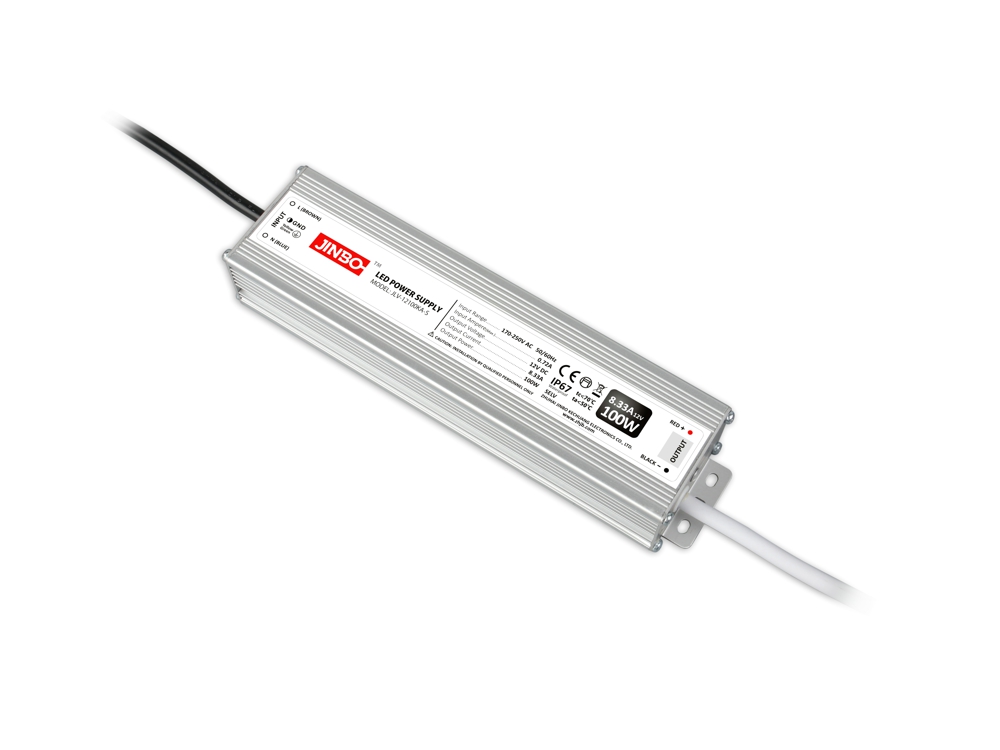

The below is a typical constant voltage LED power supply:
